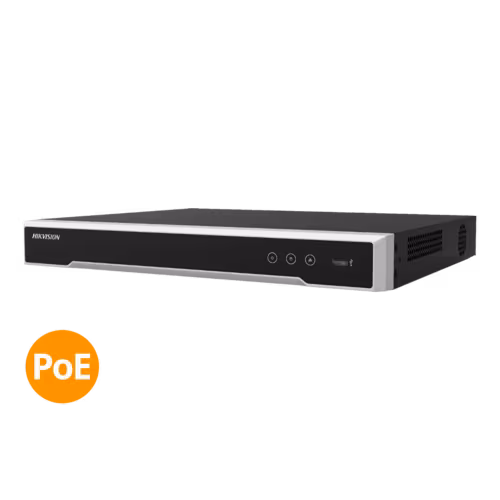

Hikvision DS-7608NI-M2/8P 8-Channel 32MP IP NVR 128 Mbps 8 x PoE+ 120W

The Hikvision DS-7608NI-M2/8P is a high performance 8 channel NVR with 8 x PoE ports capable of recording IP cameras at up to 32MP resolution.  It has 2 HDD bays suitable for 2 SATA hard drive up to 14TB and H.265+ compression technology greatly reduces the storage space required. Smart search & smart playback greatly improves playback efficiency and smart camera functions such as heat map and people counting are supported.

Interface

Features:

• H.265+ compression effectively reduces the storage space by up to 75%
• Dual-stream recording saves bandwidth
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
• Support double verification for playback and downloading
• Provide independent HDMI and VGA outputs
• HDMI video output at up to 8K resolution
• Up to 2 SATA interfaces for HDD connection
• 8-ch synchronous playback
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
• people counting
• POS information overlay on live view and playback, and POS triggered recording and alarm
• 8 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Smooth streaming technology
• Support web access without plug-in
• SPECIFICATIONS

  Video and Audio
  IP Video Input	8-ch Up to 32 MP resolution *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  Incoming Bandwidth	128 Mbps
  Outgoing Bandwidth	256 Mbps
  HDMI Output	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  VGA Output	1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  Video Output Mode	HDMI/VGA independent output
  CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  Audio Output	1-ch, RCA (Linear, 1 KΩ)
  Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  Decoding
  Dual-Stream Recording	Support
  Decoding Format	H.265+/H.265/H.264+/H.264
  Decoding Capability	2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)
  Synchronous Playback	8-ch
  Recording Resolution	32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  Stream Type	Video, Video & Audio
  Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  Network
  Remote Connection	128
  Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  Network Interface	1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  PoE
  Interface	8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  Power	≤ 120 W
  Standard	IEEE 802.3 af/at
  Auxiliary Interface
  SATA	2 SATA interfaces
  Capacity	Up to 14 TB capacity for each HDD
  Alarm In/Out	4/1
  USB Interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  General
  Power Supply	100 to 240 VAC, 50 to 60 Hz
  Consumption	≤ 15 W (without HDD and PoE off)
  Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
  Working Humidity	10% to 90%
  Dimension (W × D × H)	385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)
  Weight	≤ 3 kg (without HDD, 2.2 lb.)
  Certification
  FCC	Part 15 Subpart B, ANSI C63.4-2014
  CE	EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
