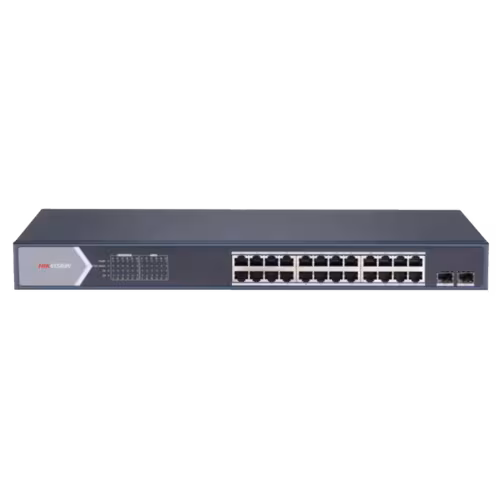

Hikvision DS-3E1526P-SI 24 Port Gigabit Smart PoE Switch

The Hikvision DS-3E1526P-SI is a smart 24-port managed desktop PoE (Power over Ethernet) switch provides power and data over a single Ethernet cable via 24 Gigabit PoE RJ45 ports and 2 × gigabit fibre optical ports, making it perfect for medium-scale IP surveillance networks. It can automatically detect and supply power to any compatible PoE camera allowing you to expand your network without separate power cables, making installation quicker, easier and more cost effective.

Interface

Features:

• 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
• SPECIFICATIONS

  General
  Shell	Metal material
  Net Weight	2.975 kg (6.56 lb)
  Gross Weight	3.535 kg (7.79 lb)
  Dimensions (W × H × D)	440.00 mm × 44.00 mm × 221.00 mm (17.32” × 1.73” × 8.70”)
  Operating Temperature	0 °C to 45 °C (0 °F to 113 °F)
  Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
  Operating Humidity	5% to 95% (no condensation)
  Relative Humidity	5% to 95% (no condensation)
  Power Supply	100 to 240 VAC, 50/60 Hz, Max. 6.3 A
  Installation Mode	Rack (equipped with mounting ears)
  Max. Power Consumption	400 W
  Power Consumption in Idle	30 W
  Surge Protection	6 KV
  Network Parameters
  Ports	24 × Gigabit PoE port,2 × Gigabit fibre optical port
  MAC Address Table	8 K
  Switching Capacity	56 Gbps
  Packet Forwarding Rate	41.66 Mpps
  Internal Cache	4.1 Mbits
  PoE Power Supply
  PoE Standard	IEEE 802.3af,IEEE 802.3at
  PoE Power Pin	End-span: 1/2(+), 3/6(-);
  PoE Port	PoE: Ports 1 to 24
  Max. Port Power	30 W
  PoE Power Budget	370 W
  Software Function
  Long Range	Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition.
  Port Isolation	Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  PoE Watchdog	Ports 1 to 24: auto detect and restart the cameras that do not respond.
  Link Aggregation	Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
  QoS	QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
  Loop Prevention	Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP.
  VLAN	VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
  HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
  System Maintenance	Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
  Port Rate-Limiting	Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
  Storm Control	Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
  Approval
  EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)
  Safety	UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  Chemistry	CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
