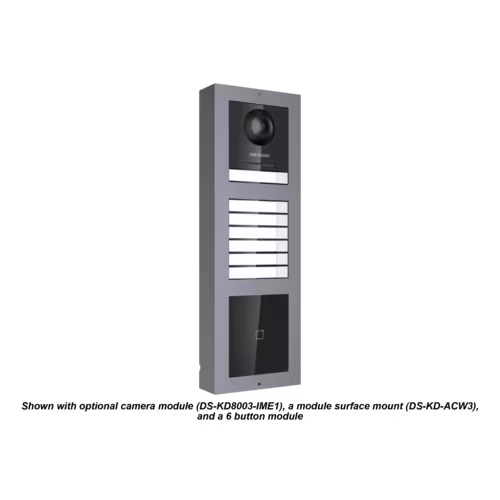

Hikvision DS-KD-M Intercom Card Reader Module

The Hikvision DS-KD-M is card reading module for use with Hikvisions modular video intercom system. It allows the user access to the property by using a MiFare ID card and supports new cards being added.

Features:

• Modular door station MiFare 1 card reader
• Unlock door by swiping card
• IP65 Rated
• Easy to fit
• Modular design makes it easy to extend
• SPECIFICATIONS

  System parameters
  Operating system	Embedded Linux operation system
  ROM	Not supported.
  RAM	Not supported.
  CPU	Embedded MCU Processor
  Display parameters
  Screen size	/
  Operation method	/
  Type	/
  Resolution	/
  Video parameters
  Lens	/
  Resolution	/
  FOV	/
  WDR	/
  Supplement light	/
  Video compression standard	/
  Audio parameters
  Audio compression standard	Not supported.
  Audio input	/
  Audio output	/
  Audio compression bitrate	Not supported.
  Audio quality	/
  Volume adjustment	Not supported.
  Capacity
  User capacity	/
  Face capacity	/
  Card capacity	/
  Linked network camera capacity	/
  Network parameters
  Communication protocol	Not supported.
  Wired network	/
  Wi-Fi standard	/
  Bluetooth version	/
  3G/4G standard	Not supported.
  Device interfaces
  Alarm input	/
  Network interface	/
  TAMPER	Not supported.
  Exit button	/
  RS-485	1
  USB	/
  Wiegand	Not supported.
  TF card	/
  Alarm output	/
  Lock control	/
  Door contact input	/
  Power interface	1
  Performances
  Multi-factor authentication	/
  General
  Button	/
  Installation	Flush Mounting, Surface Mounting
  Indicator	/
  Weight	With package: 421 g Without package: 160 g
  Protective level	IP65
  Working temperature	-40° C to +55° C (-40° F to 131° F)
  Working humidity	10% to 95%
  Dimensions	98.5 mm × 100 mm × 33.7 mm (3.87″ × 3.95″ × 1.33″)
  Battery	/
  Application environment	Outdoor
  Power consumption	0.8 W
