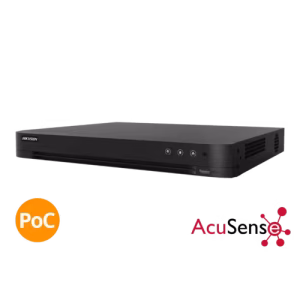

Hikvision iDS-7204HUHI-M1/XT 4-ch 5 MP 1U H.265 AcuSense DVR

The Hikvision IDS-7204HUHI-M1/XT is a hybrid digital video recorder (DVR) with 4 BNC inputs that supports analogue HDTVI/AHD/CVI/CVBS cameras up to 5 mega-pixel, and 8 IP cameras up to 8MP. The IDS-7204HUHI-M1/XT can support 12 cameras in total when combining analogue and IP cameras. The IDS-7204HUHI-M1/XT also features intelligent AcuSense deep learning technology, and facial recognition.

The PowerX DVR represents a significant upgrade in the evolution of digital video recorders (DVRs) in the video security industry. This upgrade introduces cutting-edge technologies and features to enhance intelligence and performance and improve the efficiency of video searching, giving users a more robust and comprehensive product experience.

The IDS-7204HUHI-M1/XT features deep learning-based AcuSense by default for all analogue channels, which can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights. Other deep learning features include face picture comparison and face picture search.

Interface

Features:

• 4 channels and 1 HDD 1U AcuSense DVR
• Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Support 4-ch AcuSearch Technology
• Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps
• Up to 8 channels IP camera inputs, each channel up to 8MP
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology
  SPECIFICATIONS

  Facial Recognition
  Face Picture Library	Up to 16 face picture libraries
  Face Picture Comparison	Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analogue camera)
  Perimeter Protection
  Human/Vehicle Analysis	Up to 4-ch
  Video and Audio
  IP Video Input	4-ch (up to 8-ch), each up to 8 MP
  Analog Video Input	4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  HDMI Output	1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
  VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
  CVBS Input	PAL/NTSC
  CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  Synchronous Playback	4-ch
  HDTVI Input	8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  AHD Input	5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  HDCVI Input	8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  Audio Output	1-ch, RCA (Linear, 1 KΩ)
  Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
  Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  Recording
  Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  Encoding Resolution	Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  Video Bitrate	32 Kbps to 10 Mbps
  Dual-stream	Support main stream or sub stream
  Stream Type	Video, Video & Audio
  Audio Compression	G.711u
  Audio Bitrate	64 Kbps
  Network
  Total Bandwidth	96 Mbps
  Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  Remote Connection	32
  Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  Auxiliary Interface
  SATA	1 SATA interface
  Capacity	up to 10 TB capacity for each disk
  Serial Interface	RS-485 (half-duplex)
  USB Interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  Alarm In/Out	N/A
  General
  Power Supply	12 VDC, 1.5 A
  Consumption	≤ 10 W
  Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
  Working Humidity	10% to 90%
